Thermal bridging is automatically included in VE-Apache thermal and ASHRAE & CIBSE loads simulations. Thermal bridging heat flux is collated into Vistapro external conduction gains variables. To view the detailed outputs for thermal bridging it is necessary to turn this option ON in Apache output options.
Once the Simulate button is pressed the Simulation options dialog will be displayed.

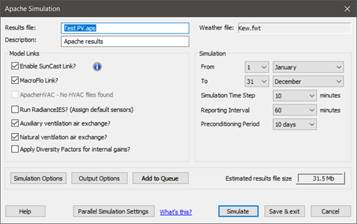

Fig: Apache simulation dialog
Select the Output options button and switch on the desired Conduction gains breakdown option(s) (output for all or for selected rooms as required and select the target spaces).
