In line with Gibraltar 2024 NCM modelling guide, electricity generator is classed in the following forms:
On-site
Off-site
Refer to ApacheSim – Compliance and EPC sections, for further information on how on-site and off-site electricity generation feeds into the Gibraltar Part F (2007) compliance and EPC reports.
On-site

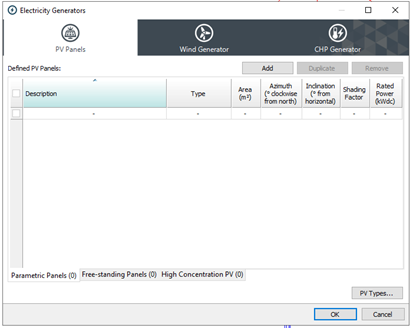

The Electricity Generators button launches the Electricity Generators dialog. Users can specify PV, Wind and Combined Heat and Power (CHP) electricity generators for the Actual building. In line with Gibraltar 2024 NCM modelling guide, this form of electricity generation is considered as on-site.
Off-site

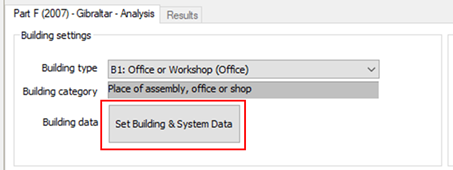

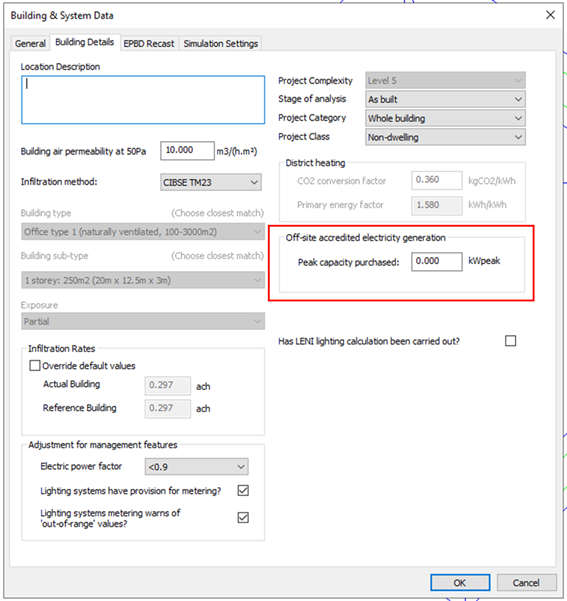

For off-site electricity generation, in line with Gibraltar 2024 NCM modelling guide, a user input parameter is included within the via the Building setting > Building & Systems data > Building details tab.
