This section outlines the critical parameters used for sizing mechanical systems. It includes:

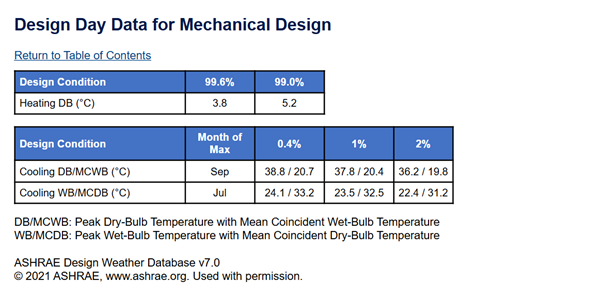

• Heating and Cooling Tables: Data for Heating Dry-Bulb (DB) at 99.6% and 99.0% percentiles, and Cooling DB/Mean Coincident Wet-Bulb (MCWB) and Peak Wet-Bulb/Mean Coincident Dry-Bulb (MCDB) at 0.4%, 1%, and 2% percentiles

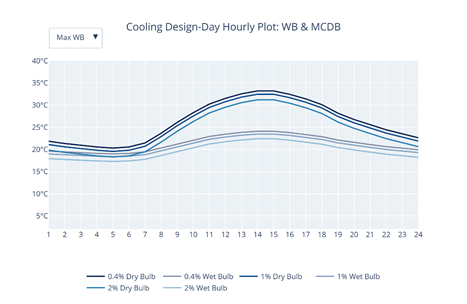

• Hourly Plots: Two primary graphs visualize the design conditions: the Cooling Design-Day Hourly Plot for DB & MCWB and the Cooling Design-Day Hourly Plot for WB & MCDB
These plots are derived from the ASHRAE Design Weather Database and reflect Apparent Solar Time. The report does not reflect user-customized data in ApLocate.
