The new surface tile has been added into the assignment dialog within Apache view. As the Armstrong Templok PCM tile is the only construction in this category, once a surface tile has been added, the Armstrong Templok construction is automatically assigned to the model.

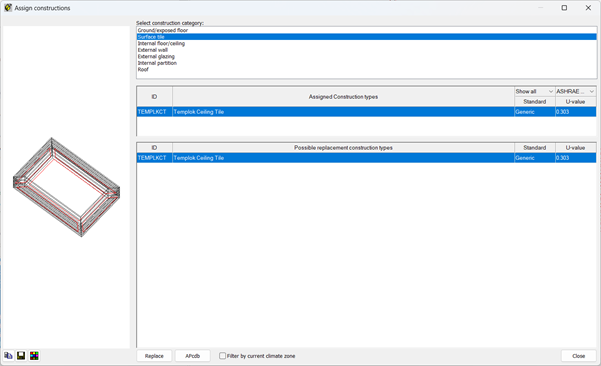

Figure: Armstrong Templok construction assigned to a model
Note, that the Armstrong Ultima tile is assigned to the model in the standard fashion
Once the Armstrong Templok tile is assigned it can be viewed in Model Viewer by using the updated ‘Input Data Visualisation’ feature in Apache view

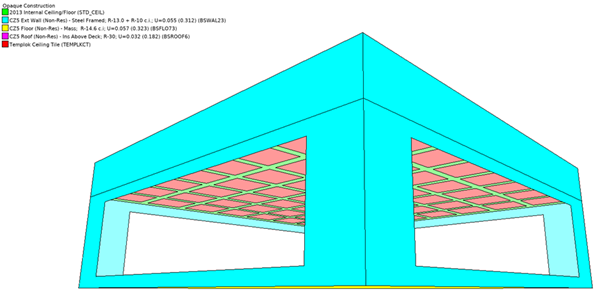

Figure: Updated ‘Input Data Visualisation’ view showing the new Armstrong Templok tile
