Cooling Tower assets process Waste Heat into water vapour, which is emitted into the atmosphere.

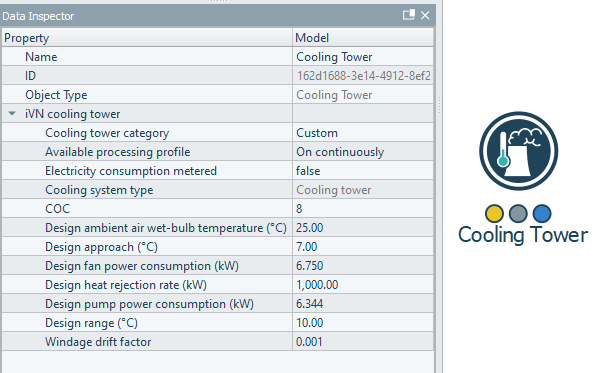

Figure4-7: Cooling Tower properties available for user editing
The ID number of each Cooling Tower is unique and used for simulation. The name is not used by the simulation engine, but should be used to give the object meaningful identification within the project.
Users can define a custom Cooling Tower, or may select from a list of pre-defined options. If defining a custom Cooling Tower, the input values described below will need to be defined. Pre-defined options are as follows:
