Project level settings can be found within Figure 3-16 and Figure 3-17. The VE location setting has to be correctly defined in order to run a successful ‘energy simulation’ via the Simulation hub.

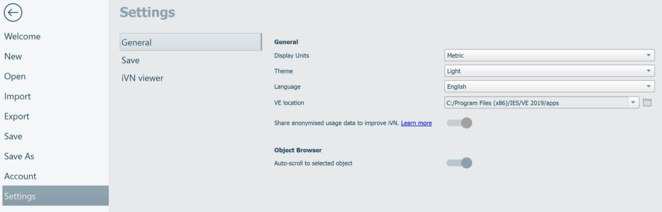

Figure3-16: Project level ‘General’ settings
Auto-save is a project level setting, accessible via the Homepage > Settings > Save page (see Figure 3-17).
Auto-save occurs when a change has been made to a project and the auto-save duration ‘save every’ has past.

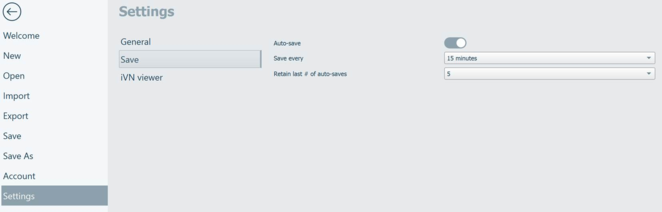

Figure3-17: Project level ‘Save’ settings
Auto-saved projects appear as sub-headings under relevant projects within the Homepage > Open page (See Figure 3-18). Auto-saved projects are timestamped and can be opened and deleted from the Homepage > Open page.

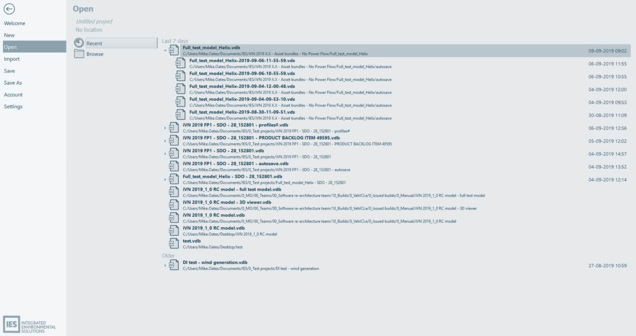

Figure3-18: Homepage > Open - Auto-saved projects

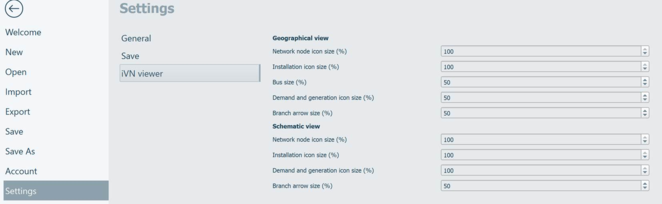

User can change object icon sizes across 2D iVN (level 1) and infrastructure (Level 2) geographical and schematic viewers via the Homepage > Settings > iVN viewer (see Figure 3-19).
iVN viewer settings are persisted on a project by project basis. Default values are used on initial project creation.
