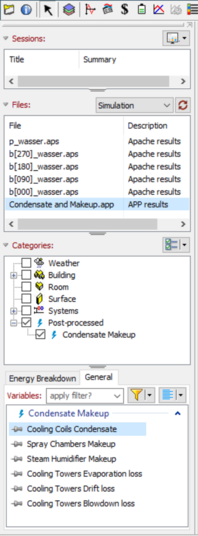

When the Water Consumption script is run a *.app file is generated with the name specified on the dialog. Select this file and choose the Port-processed >> Condensate Makeup results to access the variables calculated from the app.
The following variables are calculated (dependant on features being present in the linked ApacheHVAC file and detailed HVAC outputs being included in the simulation output options) are based on the simulation weather conditions and ApacheHVAC system performance as described in the Water Consumption Model section:
Spray Chamber Makeup: Makeup water volume associated to Spray Chambers on the HVAC airside system (gpm).
Steam Humidifier: Makeup water volume associated to Steam Humidifiers on the HVAC airside system (gpm).
Cooling Coil Condensate: Condensate water volume associated to Cooling Coils on the HVAC airside system (gpm).
Cooling Tower Evaporation Loss: The water volume associated to the Cooling Tower output evaporation loss (gpm).
Cooling Tower Drift Loss: The water volume associated to the Cooling Tower output Drift Loss (gpm).
Cooling Tower Blowdown Loss: The water volume associated to the Cooling Tower Blowdown loss (gpm).
