Wastewater treatment plants (WWTPs) are Installations that process Waste water by consuming Electricity. They convert the wastewater into a form that makes it safe for disposal into the environment.

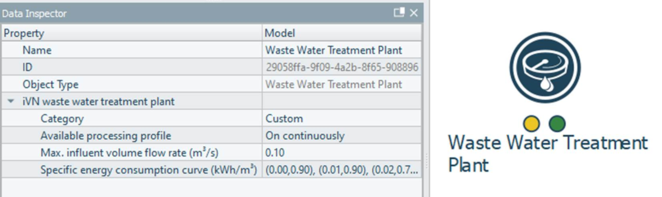

Figure4-23: Waste water treatment plant properties available for user editing
The ID number of each Waste water treatment plant object is unique and used for simulation. The name is not used by the simulation engine, but should be used to give the object meaningful identification within the project.

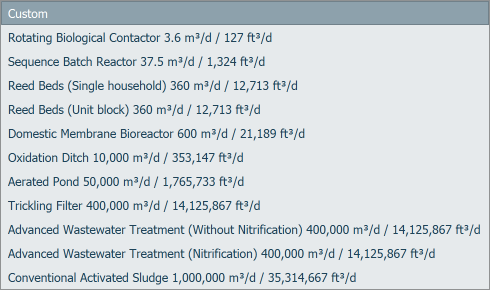

Users can define a custom Waste water treatment plant, or may select from a list of pre-defined options. If defining a custom Waste water treatment plant, the input values described below will need to be defined. Pre-defined options are as follows:
