Heat Storage assets are the primary means of storing heat within an iVN network. Heating capacity is stored as energy, not as a particular medium with unique thermal properties.

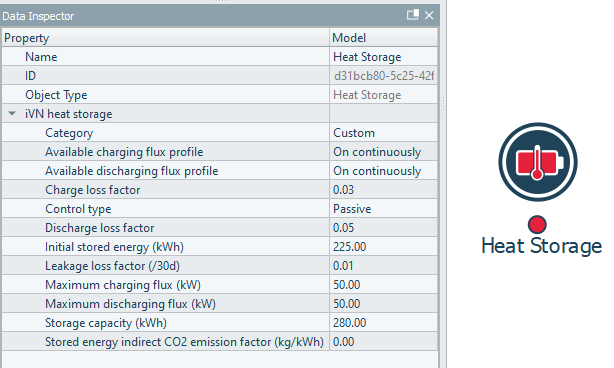

Figure4-15: Heat Storage properties available for user editing
The ID number of each Heat Storage object is unique and used for simulation. The name is not used by the simulation engine, but should be used to give the object meaningful identification within the project.
Users can define a custom Heat Storage object, or may select from a list of pre-defined options. If defining a custom Heat Storage object, the input values described below will need to be defined. Pre-defined options are as follows:
