Information about the selected node can be viewed and used to interact with channels relating to that node.
Identity (Read only)
Unique identifier within SCAN. Portion after last forward slash is the node number in the ApacheHVAC network of your VE model
Description (Read only)
Node number in the ApacheHVAC network of your VE model

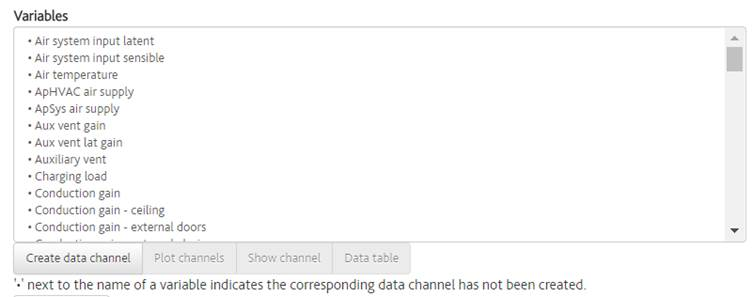

Variables
List of vista variables for that node number in the ApacheHVAC network of your VE model. This list can be used to create new data channels or navigate to the channels or their data. Variables with a ‘•’ symbol beside them have not been created.
Create data channel
Creates a new channel in your building for the highlighted channel(s). You can highlight multiple channels using “ctrl” or “shift” keys to create them in a single room.
Plot channels
Opens the plot page with the highlighted channel(s) selected.
Show channel
Opens the channel list page for the highlighted channel. If multiple channels are selected, the first selected channel will be shown.
Data table
Opens the data table with the highlighted channel(s) selected.
