4.2. iPIM project page – Side Panel

Within the main iPIM webpage, there is a side panel, click on the IES iPIM to expand the side panel.

Figure 4.2.a: iPIM – Side Panel

The side panel consists of four webpages:

· Home

· Projects

· Users

· User Guide

· Logout

Home Page: Clicking on the home page opens up the main page of iPIM. In here the user can log out of the web page.

Projects Page: This redirects to the active projects page, where the Available projects can be viewed.

Users: Clicking on this opens the users page, in here a member can be added.

Figure 4.2.b: iPIM – Side Panel – add Users

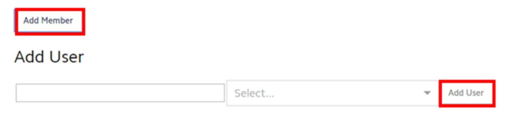

To add a new user or member, click on Add Member.

Figure 4.2.c: iPIM – Side Panel – add Users

Enter the email ID of the new user and select the Role of the user from the drop-down list. The options available to select are:

· Owner

· Editor

· Viewer

The 3 different roles give different range of access to the user:

· Owner: As an owner the user will be allowed to make any changes to the project, update/delete the project or add any number of additional new users to the project based on their preference. There is no restriction to the number of owners that can be added to a project and every owner will have the same level of access and control on the project.

· Editor: The new user can make any changes to the project, update/delete the project. The Editor doesn’t have permission to add new user to the project.

· Viewer: As a viewer the user can only open to view the project. They cannot rename, delete or manage users within the project.

Choose the appropriate option and select “Add User”.

Note, that any new user added in iPIM to a project, would need to have a registered user in our webiste: www.iesve.com with a valid login and active password.

User Guide: Clicking on this will open the iPIM user guide.

Logout: This is another way of logging out of the iPIM web portal.
