Heat Recovery Loop Diagrams on Hot Water Loop

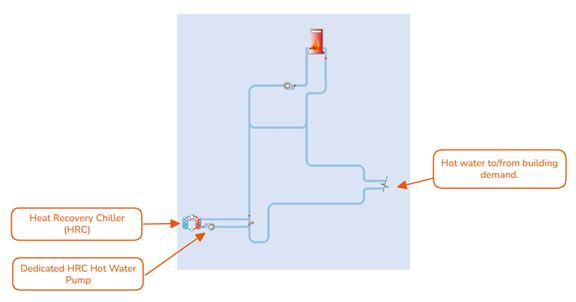

Figure: Hot Water Loop (HWL) with Heat Recovery Loop (HRL) enabled and in series

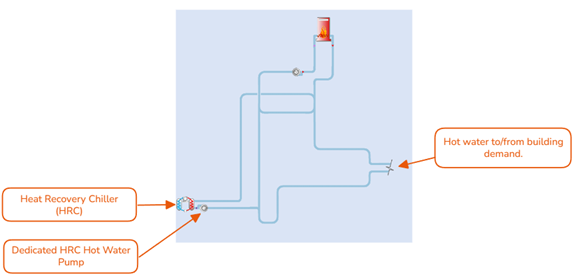

Figure: Hot Water Loop (HWL) with Heat Recovery Loop (HRL) enabled and in parallel

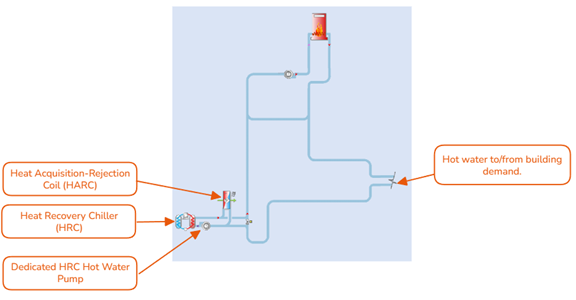

Figure: Hot Water Loop (HWL) with Heat Recovery Loop (HRL) enabled and in series with Heat Acquisition-Rejection Coil
