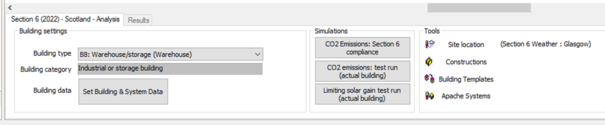

This dialog, on a tab at the lower edge of the VE Compliance screen, deals with general data required for Scotland Section 6 (2022) ApacheSim compliance analysis. It also provides the means to execute compliance simulations and other types of simulation. Results from the compliance simulations are displayed on the neighbouring Results tab.
The Analysis and Results tab will be visible provided no room is selected.
The tools frame provides shortcuts to tools for setting the following model data:
· Site location and weather data (APlocate)
· Constructions
· Building Templates
· Apache Systems
