4.4.2.5 Underground floors
Underground floors can be defined utilizing the F-factor analysis method. This can be done in the Regulations Settings screen.
Input summary for Underground Floor Slab:
· Slab Type: The Underground slab type (Heated or Unheated, On Grade or Below Grade)
· Slab insulation orientation: The location and extent of slab-on-grade floor insulation
· Slab R-Value: Nominal R-value of the underground floor slab

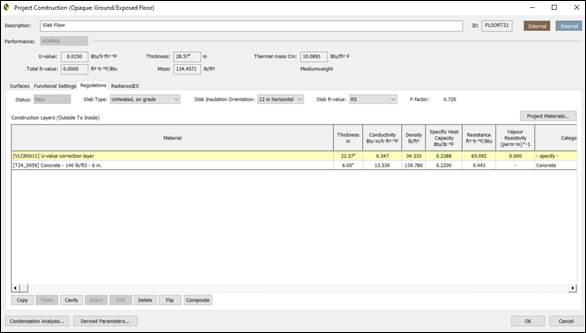

Slab on grade floor inputs

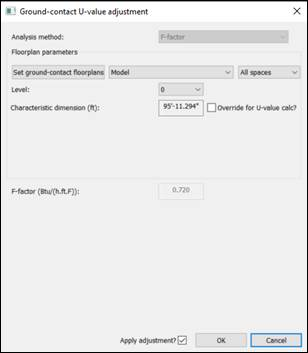

The calculated F-Factor is then applied to the constiuction via the ‘Adjust’ button under Functional Settings.
U-value correction layer
For additional information, please refer to the Constructions Database User Guide available in the User Guide found in the website HERE
