Comfort analysis (compliance)

Depending on building type users are likely to be using TM52 or BB101 standards to meet UK & Eire compliance requirements. Both standards can be accessed via the VistaPro > Comfort analysis dialog.

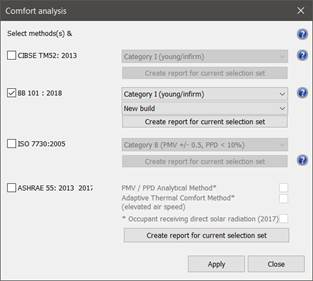

Fig 19:  Vistapro – comfort analysis dialog (BB101)

Taking BB101:2018 as the example; set the user category and the build type then press the Create report option. The VE will carry out the analysis with these settings and export a report in Excel format.

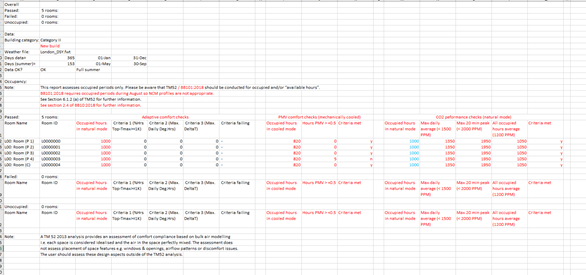

Fig 20:  Example BB101 report (free running)
